Equipment Summary
Price :
Price on Request
Type : Equipment For Sale
Date : September 15, 2021
Make : NETTO
Model : SPBA
Year : 2021
Condition : New
Warranty : Yes
Location :
MENDOZA- ARGENTINA
Description

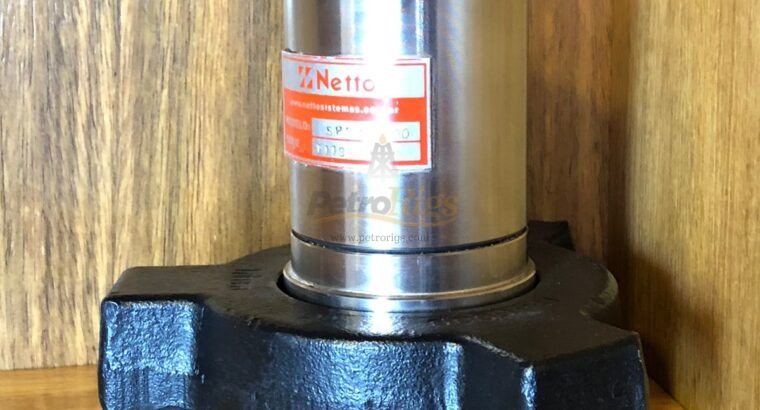

PRESSURE SENSOR TYPE CONNECTION HAMMER PBAEH 350/500/600
Model: PBAEH
Type: Pump Pressure Sensor, Direct To Injection mud
Explosion proof
Working range: 0 – 400/600/700 Kg / cm2 (or upon request)
Output Range: 4 – 20 mA
Power: 10 – 28 VDC
Maximum load resistance 150 Ohms
Process Connection: Hammer 1502 (or upon request)
Electrical connection: Terminal block for cable, 3 conductors
Physical output: With GLAND explosion proof
Inspection: Screw cap, with sealing ring
