Rig 315

Drawworks National 110-UE (1,500 hp) powered by 2-GE 752 traction motors ● Auxiliary Brake Eaton 336 WCB ● Rotary Table Ideco 275-K with a 27-1/2″ opening ● Traveling Block Lanzhou YC-450 (500 ton) ● Top Drive Canrig 1250AC (1,150 hp, 500 Ton, electric) ● Rotating Mousehole Access Oil Tools Phantom ● Generators 3-Kato 1,204 kW powered by CAT-3512C equipped with CAT bi-fuel system ● Control House Omron 4 – SCR 3 -Gen ● Annular 13-5/8″ Horn Spherical 5,000 psi ● Double Ram 13-5/8″ Cameron Type U 10,000 psi ● Single Ram 13-5/8″ Cameron Type U 10,000 psi ● Accumulator Koomey 7 Station gallon capacity ● Choke Manifold 4″ x 2″ 10,000 psi ● 1 HongHua HHF-1600HL (1,600 hp) powered by 2-Yonge YZ08 traction motors ● HongHua HHF-1600HL (1,600 hp) powered by 2-Yonge YZ08 traction motors ● Mud Line 5” Line, 7,500 psi system ● Mud Pits 2-pit system (1,340 bbl) with 6 agitators 120 bbl premix pit built into suction ● Shale Shakers 3-Derrick Hyperpool ● Desander Derrick DSV-10-2 (2 – 10″ cones) ● Desilter Derrick S-412-S (12 – 4″ cones) ● Degasser PSI ● Trip Tank 110 barrels ● Mast Pyramid 142′ 840,000 pounds static hookload on 12 lines ● Substructure Pyramid box on box 25′ floor height ● Diesel Tank 1-tank 20,000 gallon total capacity ● Water Tank 2-tank 1,000 bbl total capacity ● Drill Pipe 5″ G-105 and S-135 ● Drill Collars 7″ , 8″ ,9″ nominal sizes ● Veristic Walking System (1200 ton) ● BOP Handling System JD Neuhaus (40 Ton) ● Iron Roughneck NOV ST-80 ● Pipe Spinner OWI 357C ● Air Compressor 2-Sullivan Palatek 50 DG hp ● Fivestar surveyor wireline unit

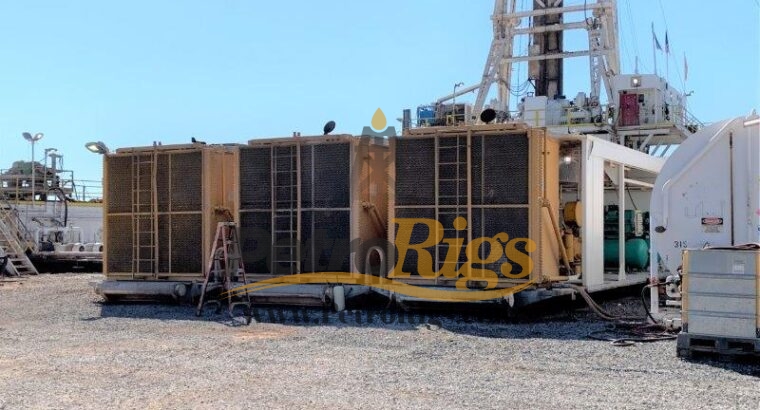

Rig 315 Gallery
