Rig 327

Drawworks Jieneng 1500 (1,500 hp) powered by 2-Yonge YZ08 traction motors ● Auxiliary Brake Eaton 336 WCBD ● Rotary Table Lanzhou ZP-375 with a 37-1/2″ opening ● Traveling Block Lanzhou YC-450 (500 ton) ● Swivel Lanzhou SL-450 (500 ton) ● Top Drive Tesco ECI 900 (900 hp, 650 Ton, electric) ● Rotating Mousehole Access Oil Tools Phantom ● Generators 3-Kato 1,204 kW powered by CAT-3512B equipped with APG bi-fuel system ● Control House Omron IDM Controls 4 – SCR 3 -Gen ● Annular 11″ Hydrill GK 5,000 psi ●Double Ram 11″ Shaffer LWS 5,000 psi ● Accumulator Koomey 5 Station 192 gallon capacity

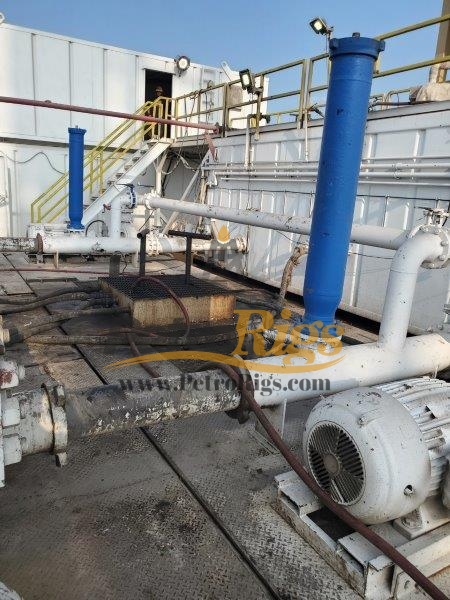

● Choke Manifold 4″ x 4″ 10,000 psi ● HongHua HHF-1600 (1,600 hp) powered by 2-Yonge YZ08 traction motors ● HongHua HHF-1600 (1,600 hp) powered by 2-Yonge YZ08 traction motors ● Mud Line 5” Line, 7,500 psi system ● Mud Pits 3-pit system (1,490 bbl) with 8 agitators 142 bbl premix pit built into suction ● Shale Shakers 2-Derrick FLC-503 ● Desander Double life I-210 (2 – 12″ cones) ● Desilter Derrick S-412-S (12 – 4″ cones) ● Degasser Brandt Atmospheric ● Separator 5′ x 17′ ● Trip Tank 140 barrels ● Mast Jieneng 150′ 1,000,000 pounds static hookload on 12 lines ● Substructure Jieneng box on box 30′ floor height ● Diesel Tank 1-tank 18,000 gallon total capacity ● Water Tank 2-tank 650 bbl total capacity ● Drill Pipe 5″ G-105 and S-135 ● Drill Collars 8″ , 6-1/2″ , nominal sizes ● Rig Moving System Woolslayer Skidding System (400 ton) ● BOP Handling System JD Neuhaus (40 Ton) ● Iron Roughneck NOV ST-80 ● Pipe Spinner OWI 35C7 ● Air Compressor 2-Sullivan Palatek 50 DG 50hp ● Oilworks Explorer 1600 wireline unit
