Wilson 42DD Workover Drilling Rig

🤑PRICE DROP🤑 Self-propelled 5 Axle Carrier Rig. This is a complete rig package, Rig was operating in late 2021.

Rig Specifications

Mast: Wilson 96-250 telescoping, built in 1974, free height 29,5 m, max. Hookload 1370 kN

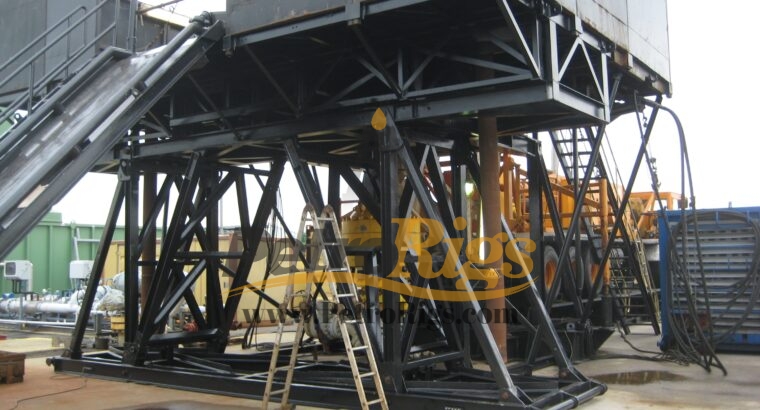

Substructure: ITAG 14′, clear height 3,0 m, height under rotary beams 3,4 m, max. simultaneous load 2.170 kN

Drawworks: Wilson 42 DD, input rating of 280 kW, Parmac 15″ assist brake

Block: Wilson W-430-WW-15, 1.370 kN

Hook: Wilson 5-36 TB/150THH

Handling Winches: Braden PD-12C, 32kN

Rotary Table: IPCUP MRL-175 hydraulic, 27 1/2″ open, load capacity 4.450 kN, input power 200 kW

Mud Pumps (2pc): EMSCO F-1000, triplex, with caterpillar D3408 on each, 2 x 398 kW

Rig Engine: Caterpillar D-3406, 328 kW

Generator (2pc): 400 kVA

Total shipping weight: 50 mt, dimension (LxWxH): 17,5 x 2,8 x 4,1 m. (this is the rig only, without pumps, generators, catwalk, substructure, etc.). This rig has road approval for Germany; 5 axes, 10mt each.

Additional Photos

Message us below for Pricing or if you have questions
